| Technical Specification |
| Model | CD-PWB48100 | CD-PWB512100 |
| Battery cell material | Lithium iron phosphate(LiFePO4) |
| Nominal capacity | 48V | 51.2V |
| Electrical characteristic | Nominal capacity | 100AH | 100AH |
| Nominal energy | 4.8KWH | 5.12KWH |
| Output power | 4.8KW | 5.12KW |
| Self-discharge rate | <3% per month |
| Lifespan | 6000cycles@80%DOD@0.5C discharge rate |
| Battery cell type | Prismatic battery cell |
| Battery cell layout | 15S1P | 16S1P |

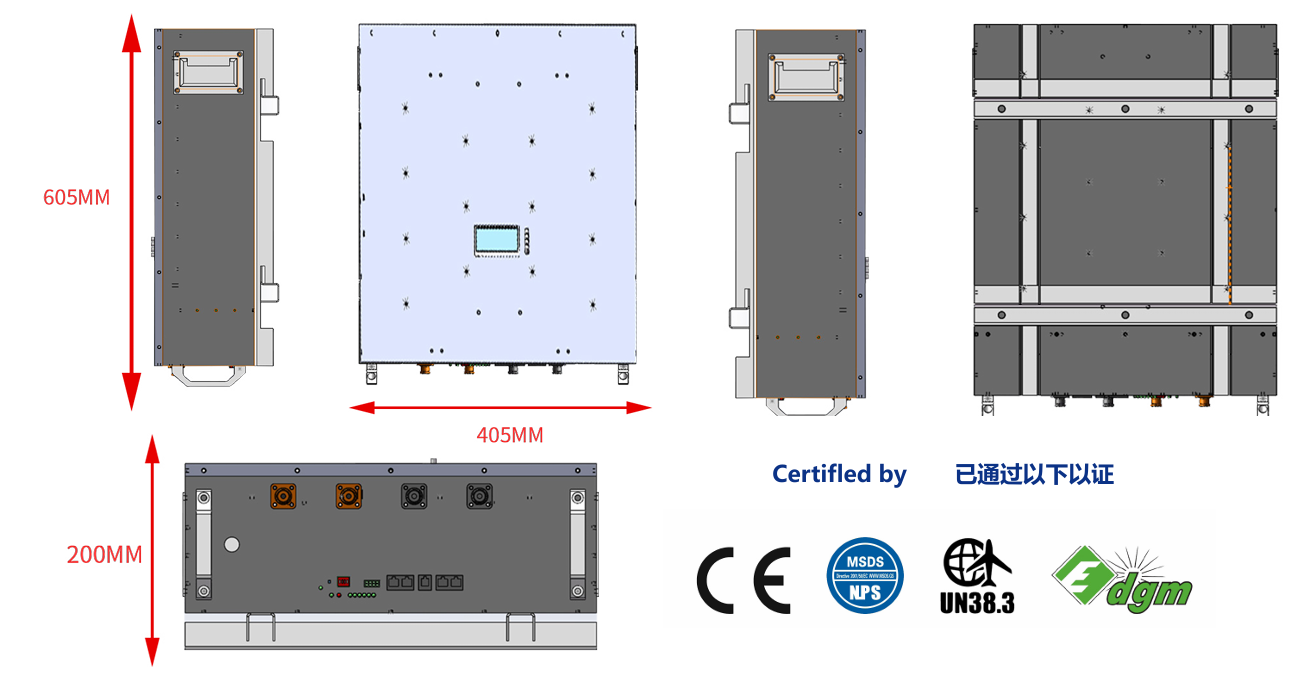

| Product dimension | 605*405*200mm |
| Packing dimension | 650*610*410mm |
| Net weight | 45 KG/100 LBS | 47 KG/103 LBS |
| Mechanical characteristic | Gross weight | 58 KG/128 LBS | 60 KG/132 LBS |
| IP level | IP54 |
| MAX parallel | 16 PCS |
| Working temperature | -20° C~60° C/-4° F~140° F;
lt's advised to be used at the range of 0° C~40° C/32° F~104° F |
| Storage temperature | Short term(within 1 mon):-20°C~45°C/-4°F~113°F;
Long term(within 1 year):10°C~40°C/50°F~104°F |
| Power terminal | Tool-free quick connect terminals |
| Max discharge current | 100A |
| Max charge current | 100A |
| Discharge protection voltage | 40.5V | 43.2V |
| Charge protection voltage | 54.75V | 58.4V |
| BMS characteristic | Float charge voltage | 54V | 57.6V |
| Overcurrent protection | 110A |
| BMS pre-charge function | Suported, pre-charge time range 1ms~5000ms |
| Short-circuit protection | Supported, recover when re-charge |
| Communication port | RS485/CAN |
| Communication protocol | Pylontech/Goodwe/Growatt/DEYE/Sofar/Solis/Must/SMA
/Luxpower/Victron/Voltronic/Megarevo/SRNE |
