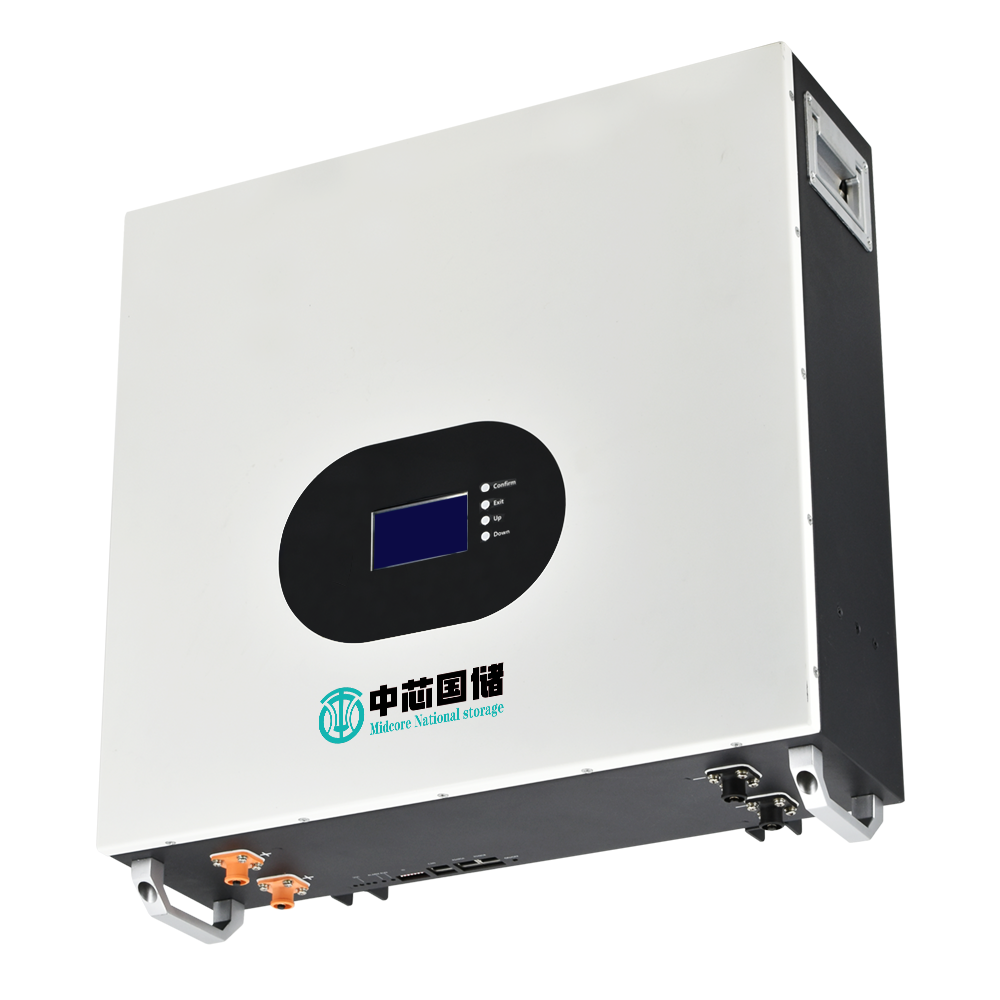

25.6V 2.56KWh/3.32KWh/3.84KWh/5.12KWh 100Ah/130Ah/150Ah/200Ah Wall Mounted Lithium Battery

25.6V 2.56KWh/3.32KWh/3.84KWh/5.12KWh 100Ah/130Ah/150Ah/200Ah Wall Mounted Lithium Battery

  1. Multiple models, suitable for 24V system/balconysolar system/micro essf deepdischarge cycle;

  2. Battery cell cycle life > 6000 times (80%DOD);

  3. Compact design, easy to install;

  4. Product design life of more than 10 years;

  5. Free maintenance.

0.00
0.00


  1. Multiple models, suitable for 24V system/balconysolar system/micro essf deepdischarge cycle;

  2. Battery cell cycle life > 6000 times (80%DOD);

  3. Compact design, easy to install;

  4. Product design life of more than 10 years;

  5. Free maintenance.


Technical Specification
Electrical characteristicModelCD-PWB24100CD-PWB24130CD-PWB24150CD-PWB24200
Battery cell materialLithiumironphosphate(LiFePO4)
Nominal capacity25.6V
Nominal Capacity100AH130AH150AH200AH
Battery energy2.56KWH3.32KWH3.84KWH5.12KWH
Output power2.56KW3.32KW3.84KW5.12KW
Self-discharge rate<3%permonth
Life span6000cycles@80%DOD@0.5Cdischargerate
Mechanical characteristicBattery cell typePrismatic battery cell
Battery cell layout8S1P8S2P8S1P8S1P
Product dimension430*350*145mm503*403*137mm530*480*165mm475*505*156mm
Net weight26.5KG/58.42LBS31KG/68.34LBS37.5KG/82.67LBS47KG/103.62LBS
IP levelIP54
MAX parallelPLUS Model:16 PCS；
Basic Model:Not supported
Working temperature-20°C~60°C/-4°F~140°F;
lt's advised to be used at the range of 0°C~40°C/32°F~104°F
Storage temperatureShort term(within1mon):-20°C~45°C/-4°F~113°F;
Long term(within 1year):10°C~40°C/50°F~104°F
Power terminalPLUS Model：Tool-free quick connect terminals；BasicModel:M8
BMS characteristicMax discharge current100A
Max charge current100A
Discharge protection voltage20.8V
Charge protection voltage29.2V
Float charge voltage29.2V
Over current protection100A105A100A100A
BMS pre-charge functionPLUS Model:1ms~5000ms Suported,pre-charge time range1ms~5000ms；
BasicModel:Not supported
Short-circuitprotectionPLUS Model:Supported,recover when re-charge；
Basic Model:Charging resumes after load removal
Communication portPLUS Model:RS485/CAN；
Basic Model:Not supported
Communication protocolPLUS Model:Pylontech/Goodwe/Growatt/DEYE/Sofar/Solis/Must/SMA/Luxpower/Victron/Voltronic/Megarevo/SRNEetc；
Basic Model:Not supported
