| Technical Specification |
| Electrical Characteristic | Model | XCD-SRB512200-A |
| Battery cell material | Lithium iron phosphate(LiFePO4) |
| Nominal capacity | 51.2V |
| Nominal capacity | 200AH |
| Nominal energy | 10.24KWH |
| Output power | 10.24KW |
| Self-discharge rate | <3%per month |
| Lifespan | 6000cycles@80%DOD@0.5C discharge rate |
| Mechanical Characteristic | Battery cell type | Prismatic battery cell |
| Battery celllayout | 16S1P |

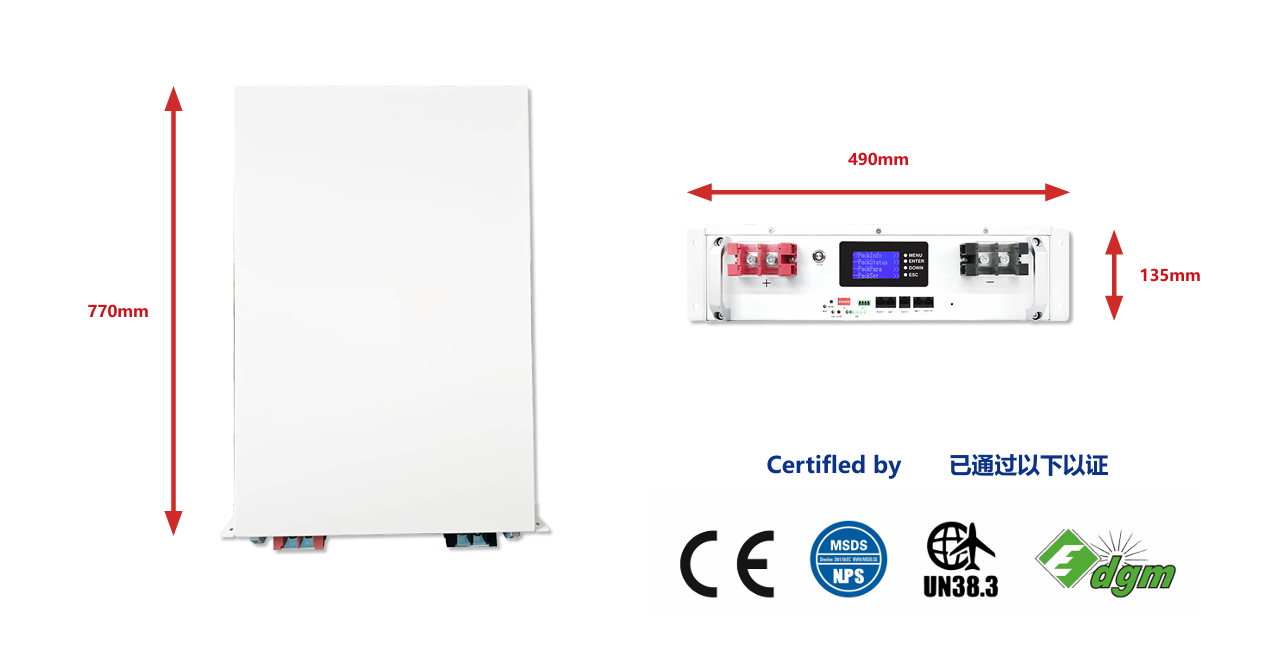

| Product dimension | 770*490*135mm |
| Packing dimension | 890*570*300mm |
| Net weight | 81 KG/178.57 LBS |
| Gross weight | 98 KG/216.05 LBS |
| IP level | IP54 |
| MAX parallel | 16 PCS |
| Working temperature | -20° C~60° C/-4° F~140° F;It's advised to be used at the range of 0° C~40° C/32° F~104° F |
| Storage temperature | Short term(within 1 mon):-20° C~45° C/-4° F~113° F;Long term(within 1 year):10° C~40° C/50° F~104° F |

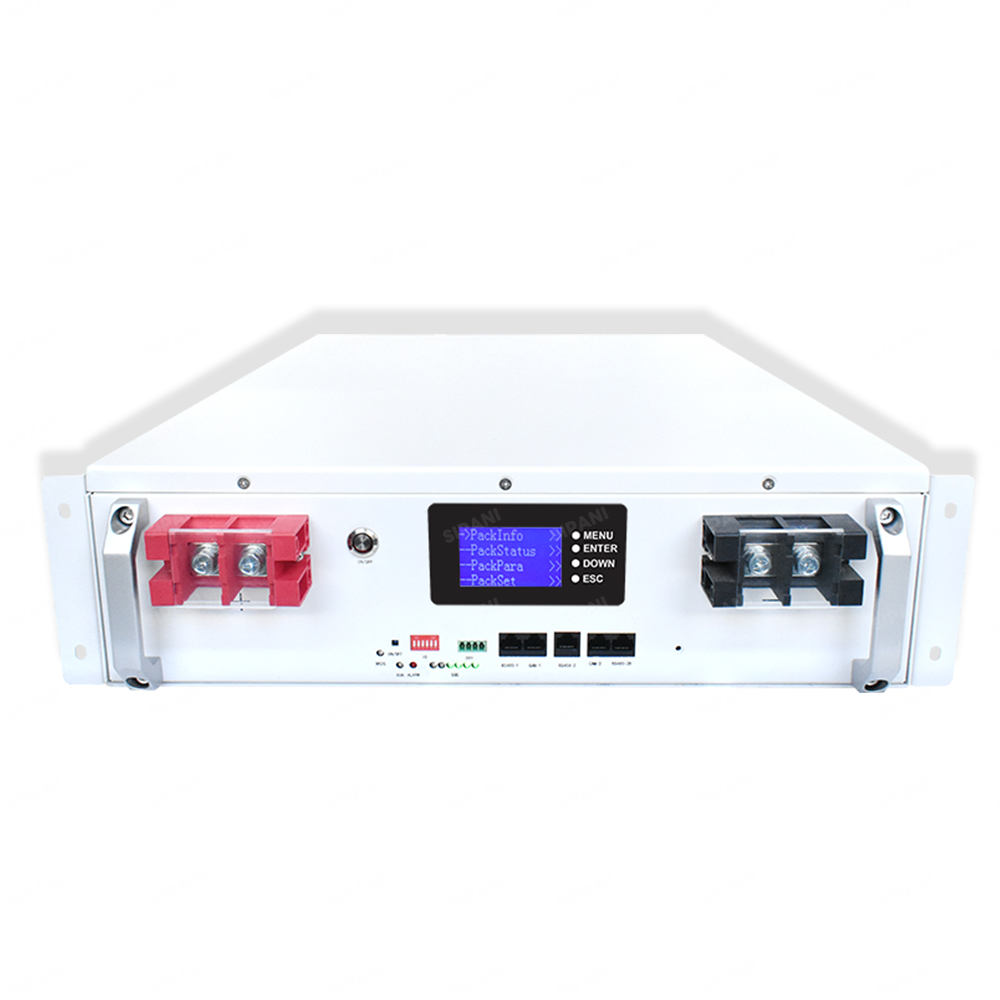

| Power terminal | Tool-free quick connect terminals |
| BMS Characteristic | Max discharge current | 200A |
| Max charge current | 200A |
| Discharge protection voltage | 43.2V |
| Charge protection voltage | 58.4V |
| Float charge voltage | 57.6V |
| Overcurrent protection | 210A |
| BMS pre-charge function | Suported,pre-charge time range 1ms~5000ms |
| Short-circuit protection | Supported,recover when re-charge |
| Communication port | RS485/CAN |
| Communication protocol | Pylontech/Goodwe/Growatt/DEYE/Sofar/Solis/Must/SMA/Luxpower/Victron/Voltronic/Megarevo/ SRNE
|
