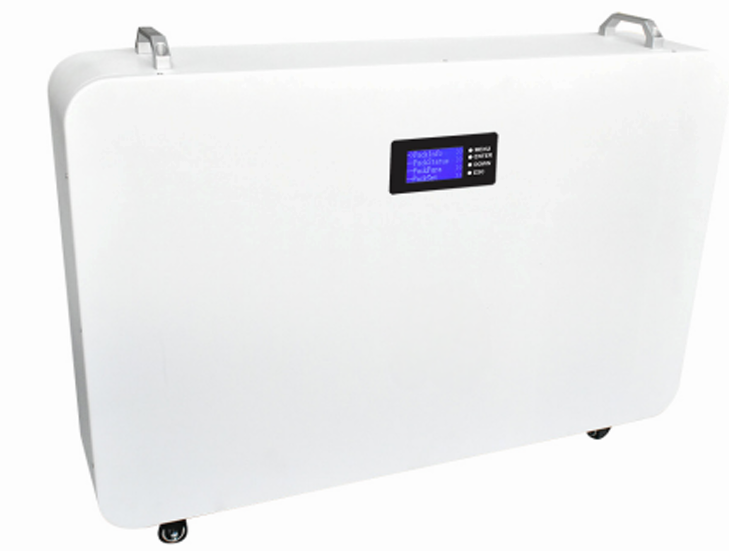

51.2V LiFePO4 Battery 5KWh/10KWh mobile Battery For House 100Ah/200Ah

51.2V LiFePO4 Battery 5KWh/10KWh mobile Battery For House 100Ah/200Ah

Our efficient and durable powerwall and wall-mounted batteries are designed for solar storage, providing continuous power when you need it most. Certified with UL9540A, UL9540, UL1973, and CB-IEC62619, our products guarantee safety and reliability. Whether you are a homeowner looking to save on electricity bills or a business aiming for sustainable energy solutions, our Power Storage Wall is the ideal choice.

0.00
0.00


Our efficient and durable powerwall and wall-mounted batteries are designed for solar storage, providing continuous power when you need it most. Certified with UL9540A, UL9540, UL1973, and CB-IEC62619, our products guarantee safety and reliability. Whether you are a homeowner looking to save on electricity bills or a business aiming for sustainable energy solutions, our Power Storage Wall is the ideal choice.



ModelXCD-WTB512100XCD-WTB5121200

Battery cell materialLithium iron phosphate(LiFePO4)

Nominal capacity51.2V51.2V

Nominal capacity100AH200AH
Electrical characteristicNominal energy5.12KWH10.24KWH

Output power5.12KW10.24KW

Self-discharge rate<3%per month

Lifespan6000cycles@80%DOD@0.5C discharge rate

Battery cell typePrismatic battery cell

Battery celllayout16S1P

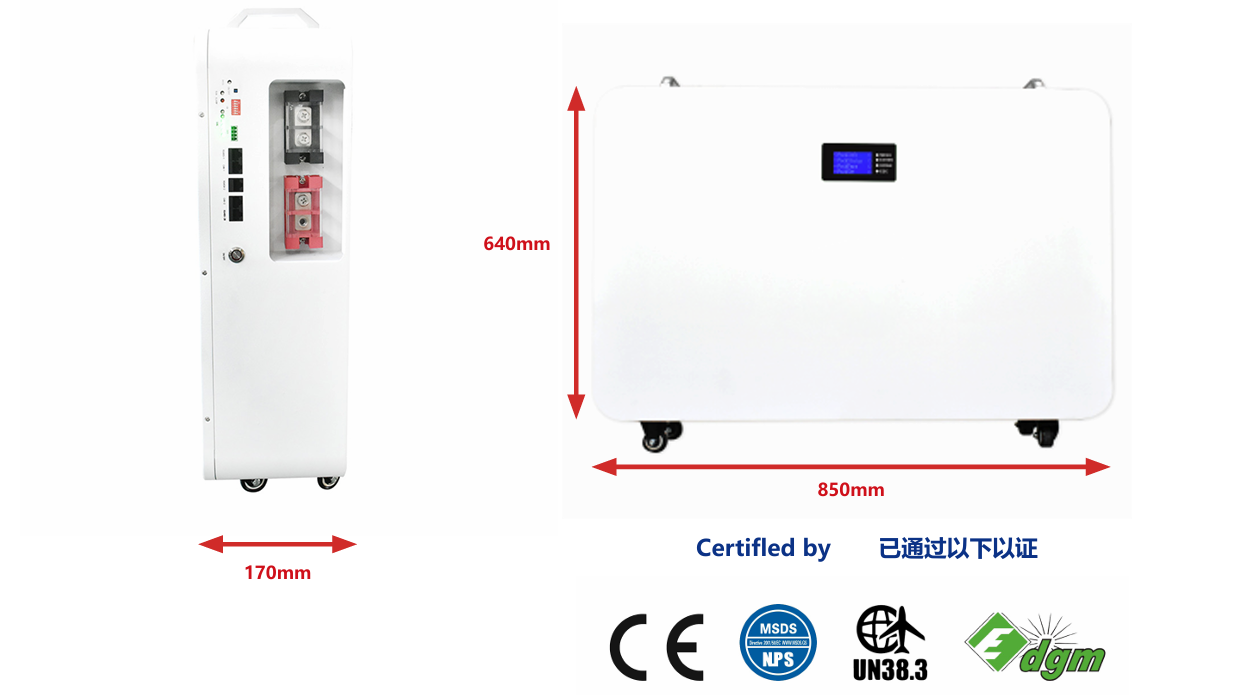

Product dimension770*170*490mm850*170*640mm

Packing dimension890*340*570mm970*340*730mm

Net weight47 KG/103.62 LBS86 KG/189.6 LBS
Mechanical characteristicGross weight62 KG/136.69 LBS103 KG/227.08 LBS

IP levelIP54

MAX parallel16 PCS

Working temperature-20° C~60° C/-4° F~140° F;
It's advised to be used at the range of 0° C~40° C/32° F~104° F

Storage temperatureShort term(within 1 mon):-20° C~45° C/-4° F~113° F;
Long term(within 1year):10° C~40° C/50° F~104° F

Power terminalTool-free quick connect terminals

Max discharge current100A200A

Max charge current100A200A

Discharge protection voltage43.2V43.2V

Charge protection voltage58.4V58.4V

Float charge voltage57.6V57.6V
BMS characteristicOvercurrent protection110A210A

BMS pre-charge functionSuported,pre-charge time range 1ms~5000ms

Short-circuit protectionSupported,recover when re-charge

Communication portRS485/CAN

Communication protocolPylontech/Goodwe/Growatt/DEYE/Sofar/Solis/
Must/SMA/Luxpower/Victron/Voltronic/Megarevo/SRNE
