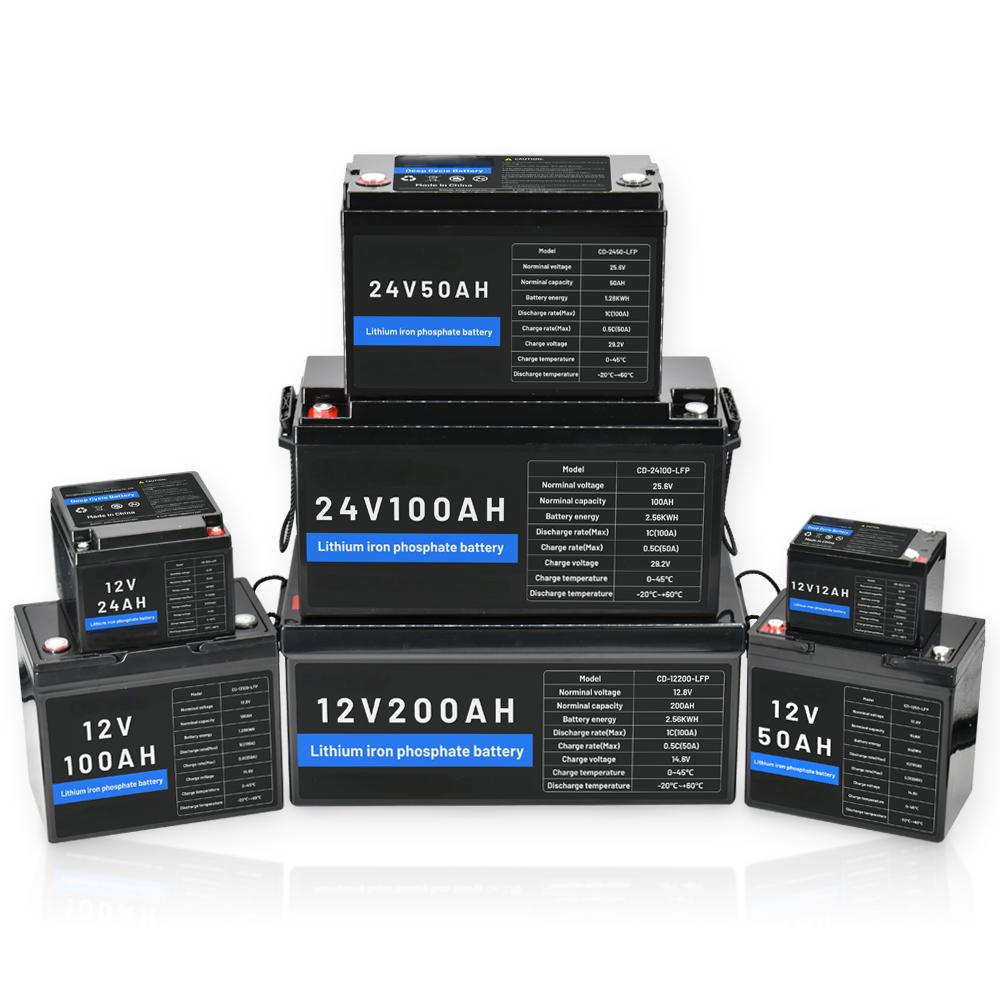

12V/24V 150Ah 200Ah Deep Cycle LiFePO4 Battery Lithium 24Ah 50Ah 100Ah

1. 6000 times of deepdischarge cycle

2. Maintenance-free,low self-discharge rate

3. BMS protection

4. 70% lighter than lead acid at the same capacity

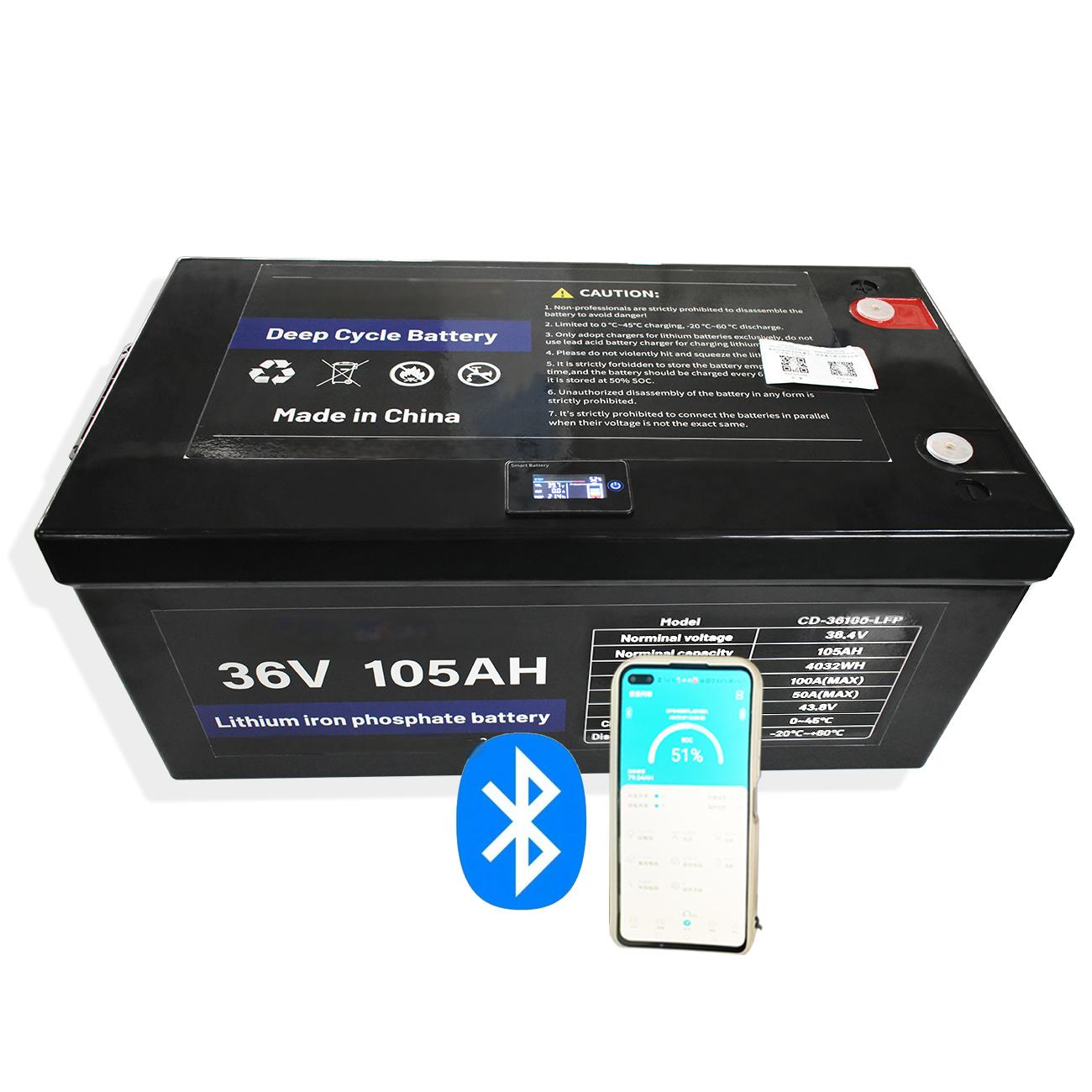

5. Support serial use

6. Screen and bluetooth optional

0.00

1. 6000 times of deepdischarge cycle

2. Maintenance-free,low self-discharge rate

3. BMS protection

4. 70% lighter than lead acid at the same capacity

5. Support serial use

6. Screen and bluetooth optional

Technical Specification

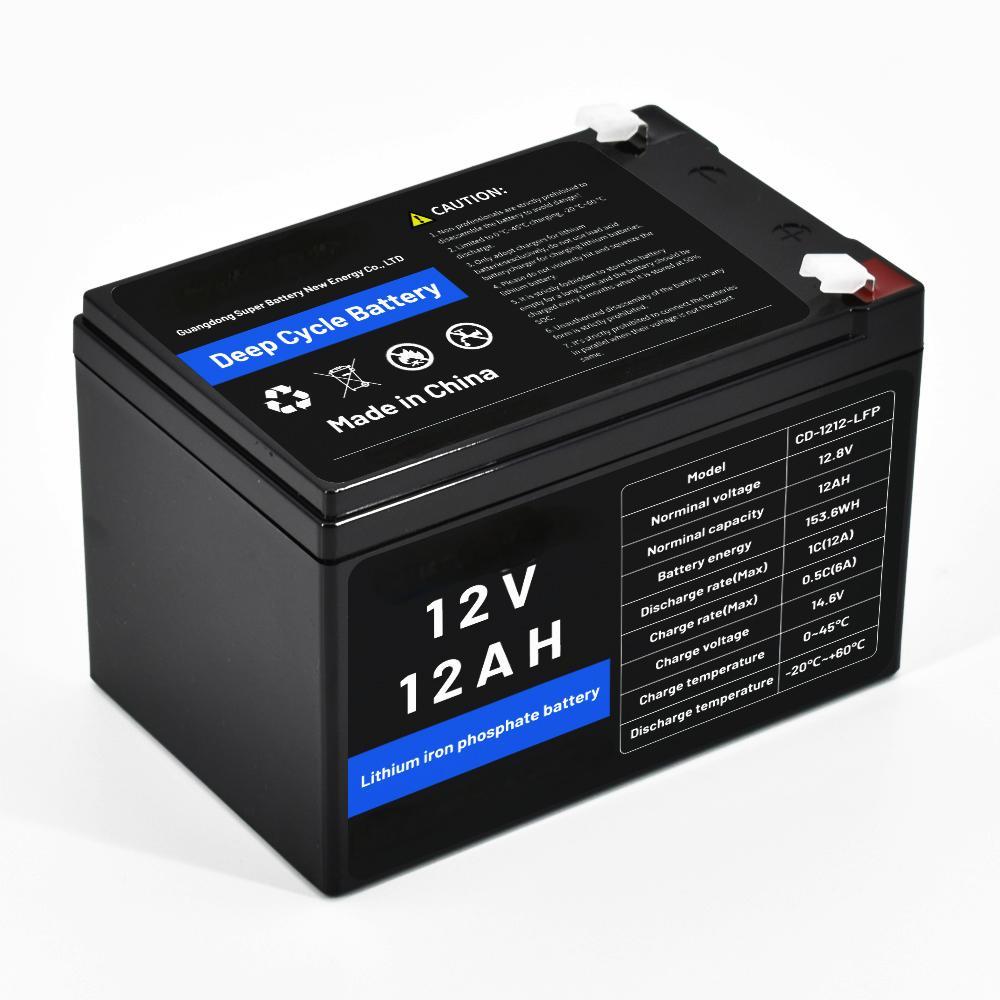

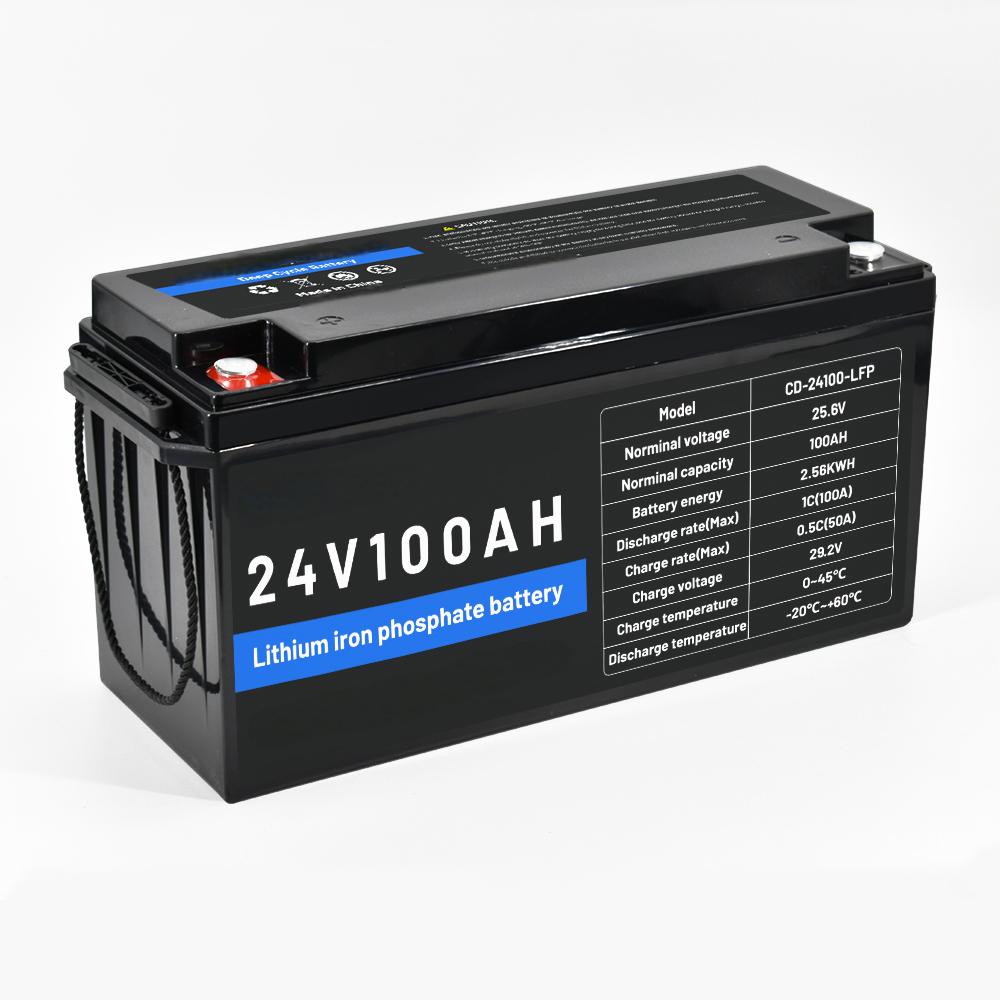

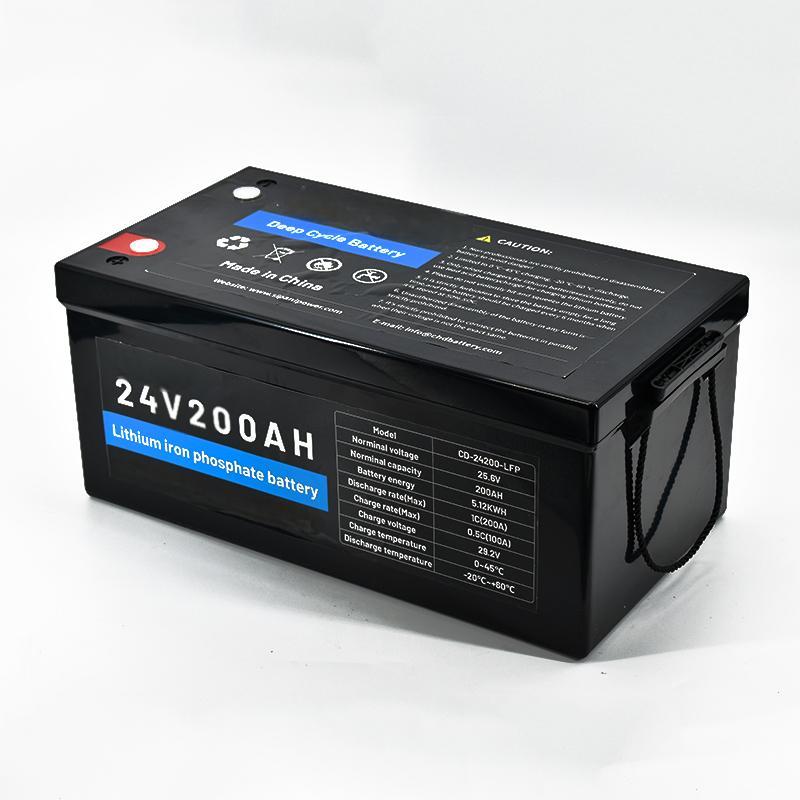

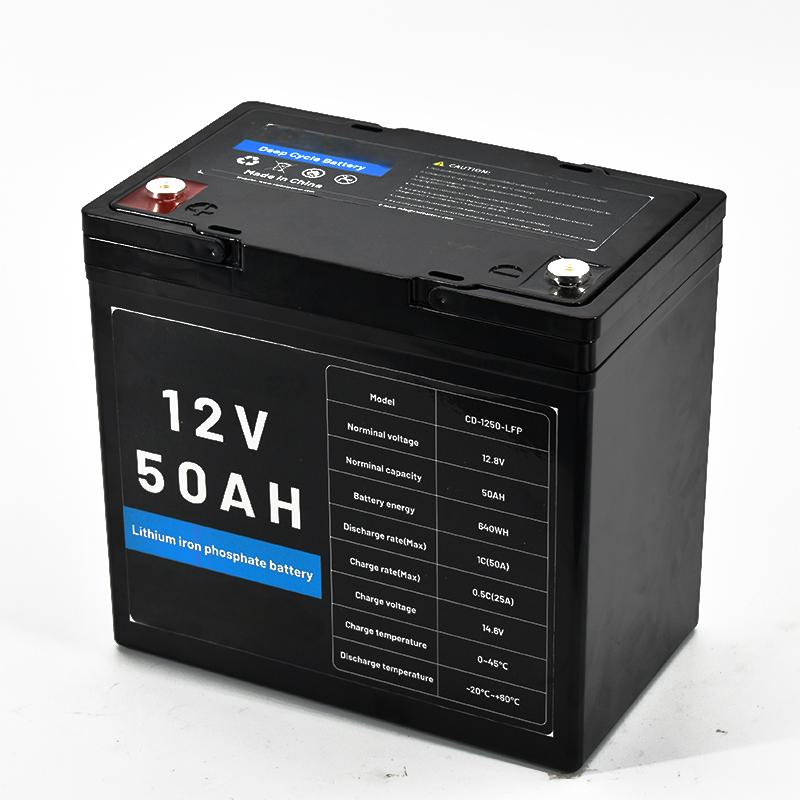

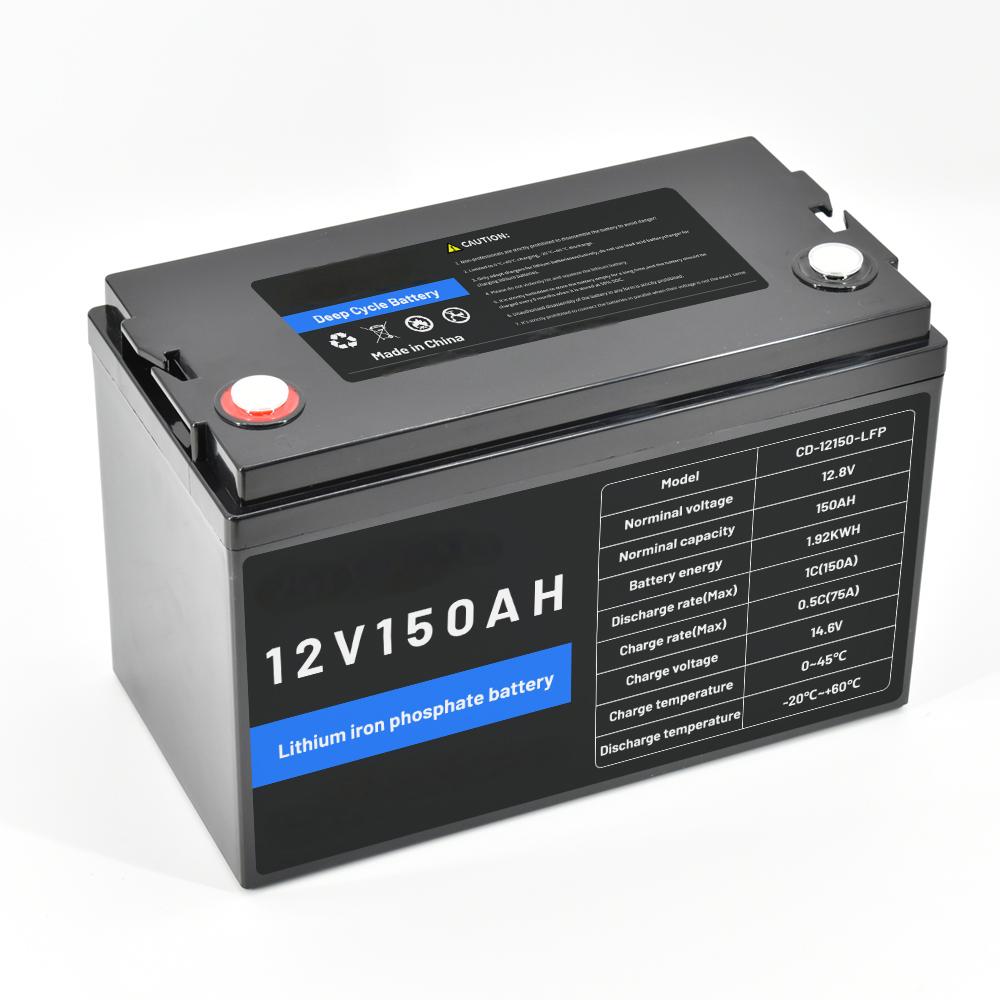

Model	CD-1212-LFP	CD-1224-LFP	CD-1250-LFP	CD-12100-LFP	CD-12150-LFP	CD-12200-LFP	CD-2450-LFP	CD-24100-LFP	CD-24150-LFP	CD-24200-LFP
NominalVoltage	12.8V	12.8V	12.8V	12.8V	12.8V	12.8V	25.6V	25.6V	25.6V	25.6V
NominalCapacity	12AH	24AH	50AH	100AH	150AH	200AH	50AH	100AH	150AH	200AH
Batteryenergy	153.6WH	307.2WH	640WH	1.28KWH	1.92KWH	2.56KWH	1.28KWH	2.56KWH	3.84KWH	5.12KWH
Celltype	Lithium iron phosphate(LiFePO4) prismatic battery cell
Self-DischargeRate	≤3%per month @25℃
Batterypack resistance	≤50mΩ
Cyclelife	6000 cycles @80%DOD @0.5C
Working voltage range	10V~14.6V					20V~29.2V
Charge rate(max)	0.5C
Discharge rate(max)	1C
Series connection(max)	4pcs					2pcs
Charge mode	CC-CV
BMS function	Over-charge,over-discharge,over-current,short-circuit protection,equalization function
Charging temperature	0~45℃
Discharging temperature	20°℃~+60℃
Storage temperature	20°℃~+45°℃(within 1 month)/0°C~35°℃(1 year)
Terminal type	F12	M6		M8
IP level	IP65
Casing material	ABS
Casing size(mm)	1519998	176x166x125	229138208	260168209	330175220	520269220	330175220	483170240	520269220	520269220
Net Weight	1.5KG	3KG	5KG	8KG	13.6KG	19.5KG	10KG	16.5KG	27.5KG	35.5KG
Gross weight	2.2KG	3.8KG	6KG	9KG	14.6KG	21KG	11KG	17.5KG	29KG	37KG
